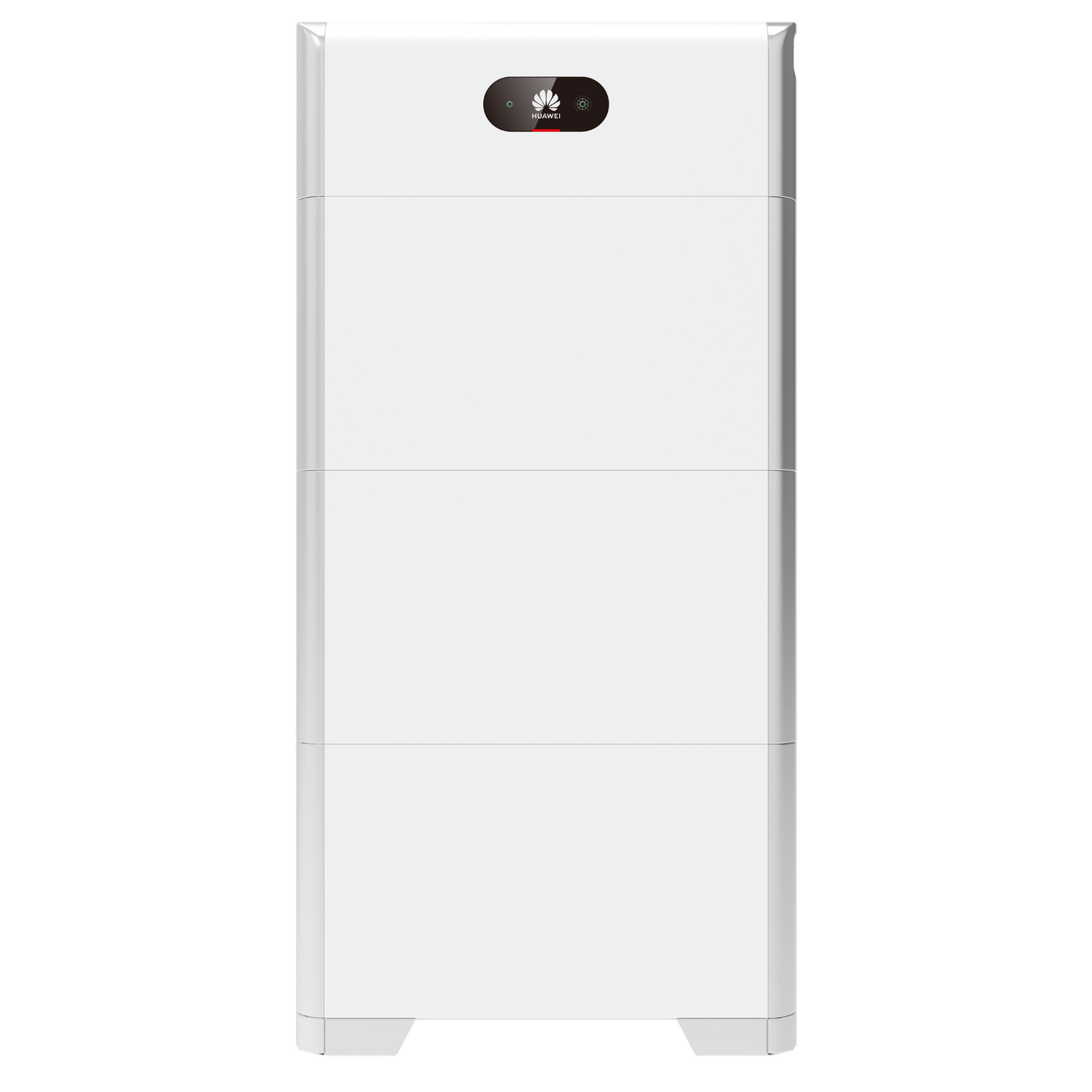

HUAWEI LUNA2000-15-S0 PV Storage Battery
HUAWEI LUNA2000-15-S0 PV Storage Battery este în așteptare și va fi expediat de îndată ce este din nou în stoc.
Delivery and Shipping 24 hours
Delivery and Shipping 24 hours
Add some general information about your delivery and shipping policies.
Descriere
Descriere
Buy Huawei LUNA2000-15-S0 PV Battery from HYTECH
Why you should choose a LUNA2000-15-S0
PV Battery from Huawei now.
The Huawei Luna Smart String Battery offers a modular solution tailored to your needs. With 5 kWh, 10 kWh, or 15 kWh and the ability to expand later, the Luna battery is ideal for responding to changing needs. In combination with the optional PV Optimizer, you get a powerful system with high efficiency.
Safe and reliable
- Modular design (5kWh)
- Flexible planning
- Expandable up to 30 kWh
- Perfect compatibility
- Can be combined with single-phase and three-phase Huawei inverters
- Lithium iron phosphate cell
- Multi-level safety concept
Simple installation
- Power module = 12 kg
- Battery module = 50 kg
- Quick commissioning
- Recognition via APP
- More energy
- 100% depth of discharge
- Load optimization
Huawei Luna advantages
- Modular design with up to 15kWh
- Parallel operation with 2 systems, up to 30kWh
- Can be retrofitted at any time, plug and play
- DC system, reduces losses
- Real 15kWh, DOD of 100%
- Lithium iron phosphate technology
- For indoor and outdoor installation
Huawei LUNA2000-15-S0 - Technical Specifications
All facts and figures are summarised for you in a compact and up-to-date form at.
Huawei LUNA2000-15-S0 - General Specifications
Dimensions (W*D*H): 670 * 150 * 1320 mm
Weight (incl. stand): 163.8kg
Power module Dimensions (W*D*TH): 670 * 150 * 240 mm
Power module Weight: 12 kg
Battery module Dimensions (W*D*H): 670 * 150 * 360 mm
Battery module Weight: 50 kg
Installation: Stand (standard), Wall mounting (optional)
Operating temperature range: -10°C~ +55°C1
Rel. Operating humidity: 5%~95%
Cooling: Convection cooling
Protection class: IP 65
Noise emission: < 29 dB
Cell technology: Lithium iron phosphate (LiFePO4)
Warranty: 10 years2
Scalability: Parallel operation of max. 2 batteries
Huawei LUNA2000-15-S0 - Performance
Power module: LUNA2000-5KW-C0
Number of power modules: 1
Battery module: LUNA2000-5E0
Battery module capacity: 5 kWh
Number of battery modules: 3
Usable battery energy 15 kWh
Nominal discharge power: 5 kW
Maximum discharge power: 7 kW, 10 s
Nominal voltage (1-phase WR/L1): 360 V
Operating voltage range (1-phase WR/L1): 350 - 560 V
Nominal voltage (3-phase WR - M1): 600 V
Operating voltage range (3-phase WR/M1): 600 - 980 V
Huawei LUNA2000-15-S0 - Compatible inverters
SUN2000L-2/3/3.68/4/4.6/5KTL , SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0 ,
SUN2000-3/4/5/6/8/10KTL-M1
Huawei LUNA2000-15-S0 - Communication
Display: SOC Status - LED, Status - LED
Communication: RS485, CAN (only for parallel operation)
Huawei LUNA2000-15-S0 - Standards and Safety
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3
Huawei LUNA2000-15-S0 - Product Names
1x LUNA2000-10-S0 consists of:
1x LUNA2000-5KW-C0 (power module)
3x LUNA2000-5-E0 (battery module)
Huawei LUNA2000-15-S0 - Notes and explanations
1 Charge/discharge power derating and heating if necessary at temperatures from -10°C to +5°C & +45°C to +55°C. Recommended operating temperature +15°C to +30°C.
2 Please refer to the valid warranty conditions for details.
