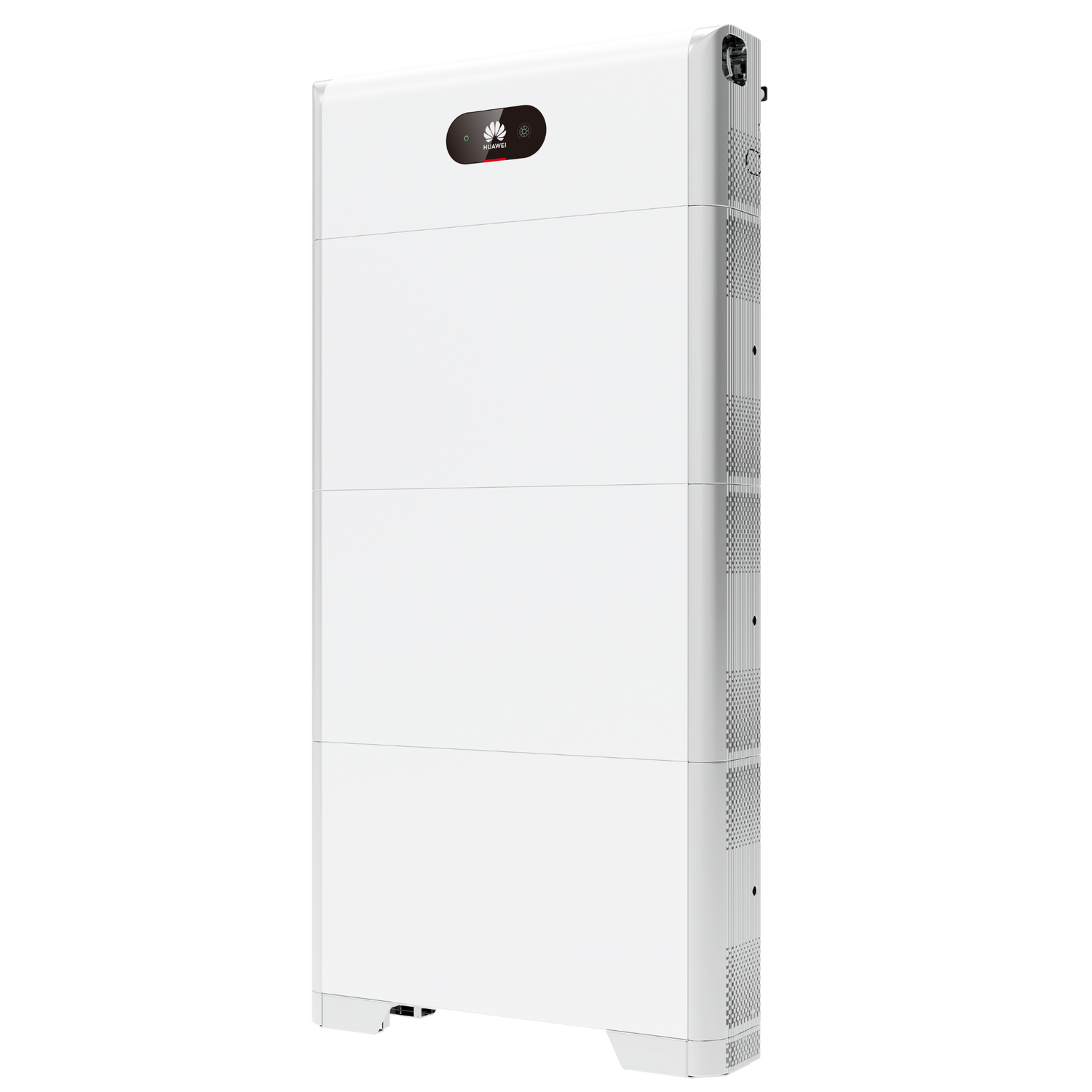

HUAWEI LUNA2000-10-S0 PV Storage Battery

Delivery and Shipping 24 hours

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers


Buy Huawei LUNA2000-10-S0 PV Battery from HYTECH

Why you should choose a LUNA2000-10-S0
PV Battery from Huawei now.

The Huawei Luna Smart String Battery offers a modular solution tailored to your needs. With 5 kWh, 10 kWh, or 15 kWh and the ability to expand later, the Luna battery is ideal for responding to changing needs. In combination with the optional PV Optimizer, you get a powerful system with high efficiency.

Safe and reliable

  • Modular design (5kWh)
  • Flexible planning
  • Expandable up to 30 kWh
  • Perfect compatibility
  • Can be combined with single-phase and three-phase Huawei inverters
  • Lithium iron phosphate cell
  • Multi-level safety concept

Simple installation

  • Power module = 12 kg
  • Battery module = 50 kg
  • Quick commissioning
  • Recognition via APP
  • More energy
  • 100% depth of discharge
  • Load optimization

Huawei Luna advantages

  • Modular design with up to 15kWh
  • Parallel operation with 2 systems, up to 30kWh
  • Can be retrofitted at any time, plug and play
  • DC system, reduces losses
  • Real 15kWh, DOD of 100%
  • Lithium iron phosphate technology
  • For indoor and outdoor installation

Huawei LUNA2000-10-S0 - Technical Specifications

All the latest facts and figures
summarized compactly for you.

Huawei LUNA2000-10-S0 - General Specifications

Abmessungen (B*T*H): 670 * 150 * 960 mm
Gewicht (inkl. Standfuß): 113,8kg
Leistungsmodul Abmessungen (B*T*TH): 670 * 150 * 240 mm
Lesitungsmodul Gewicht: 12 kg
Batteriemodul Abmessungen (B*T*H): 670 * 150 * 360 mm
Batteriemodul Gewicht: 50 kg
Installation: Standfuß (standard), Wandmontage (optional)
Betriebstemperaturbereich: -10°C~ +55°C1
Rel. Luftfeutchtigkeit im Betrieb: 5%~95%
Kühlung: Konvektionskühlung
Schutzart: IP 65
Geräuschentwicklung: <29 dB
Zelltechnologie: Lithium-Eisenphosphat (LiFePO4)
Garantie: 10 Jahre2
Skalierbarkeit: Parallelbetrieb von max. 2 Batterien

Huawei LUNA2000-10-S0 - Performance

Power module: LUNA2000-5KW-C0
Number of power modules: 1
Battery module: LUNA2000-5E0
Battery module capacity: 5 kWh
Number of battery modules: 2
Usable energy of the battery 10 kWh
Nominal discharge power: 5 kW
Maximum discharge capacity: 7 kW, 10 s
Nominal voltage (1-phase WR/L1): 360 V
Operating voltage range (1-phase WR/L1): 350 - 560 V
Rated voltage (3-phase WR - M1): 600 V
Operating voltage range (3-phase WR/M1): 600 - 980 V

Huawei LUNA2000-10-S0 - Compatible inverters

SUN2000L-2/3/3.68/4/4.6/5KTL , SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0 , SUN2000-3/4/5/6/8/10KTL-M1

Huawei LUNA2000-10-S0 - Communication

Display: SOC status LED, status LED
Communication: RS485, CAN (only for parallel operation)

Huawei LUNA2000-10-S0 - Standards and Security

Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3

Huawei LUNA2000-10-S0 - Product Names

1x LUNA2000-10-S0 consists of:
1x LUNA2000-5KW-C0 (power module)
2x LUNA2000-5-E0 (battery module)

Huawei LUNA2000-10-S0 - Notes and explanations

1 Charge/discharge power derating and heating if necessary at temperatures from -10°C to +5°C & +45°C to +55°C. Recommended operating temperature +15°C to +30°C.

2 Please refer to the valid warranty conditions for details.
